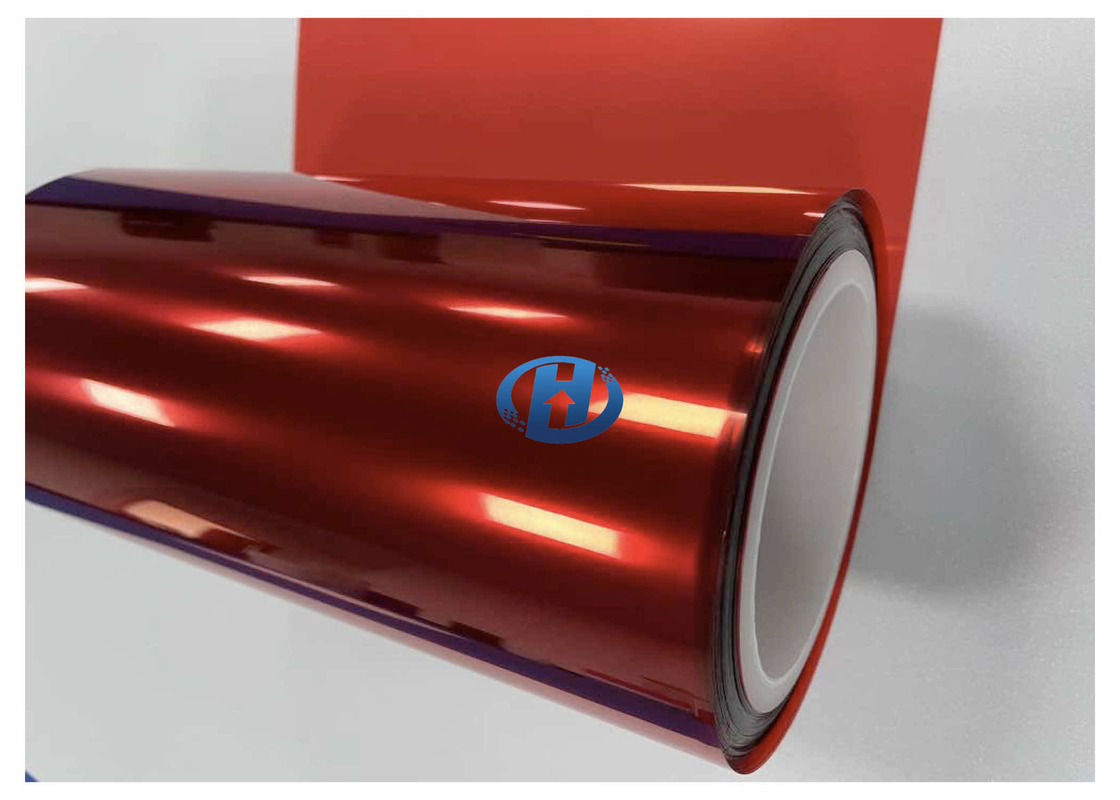

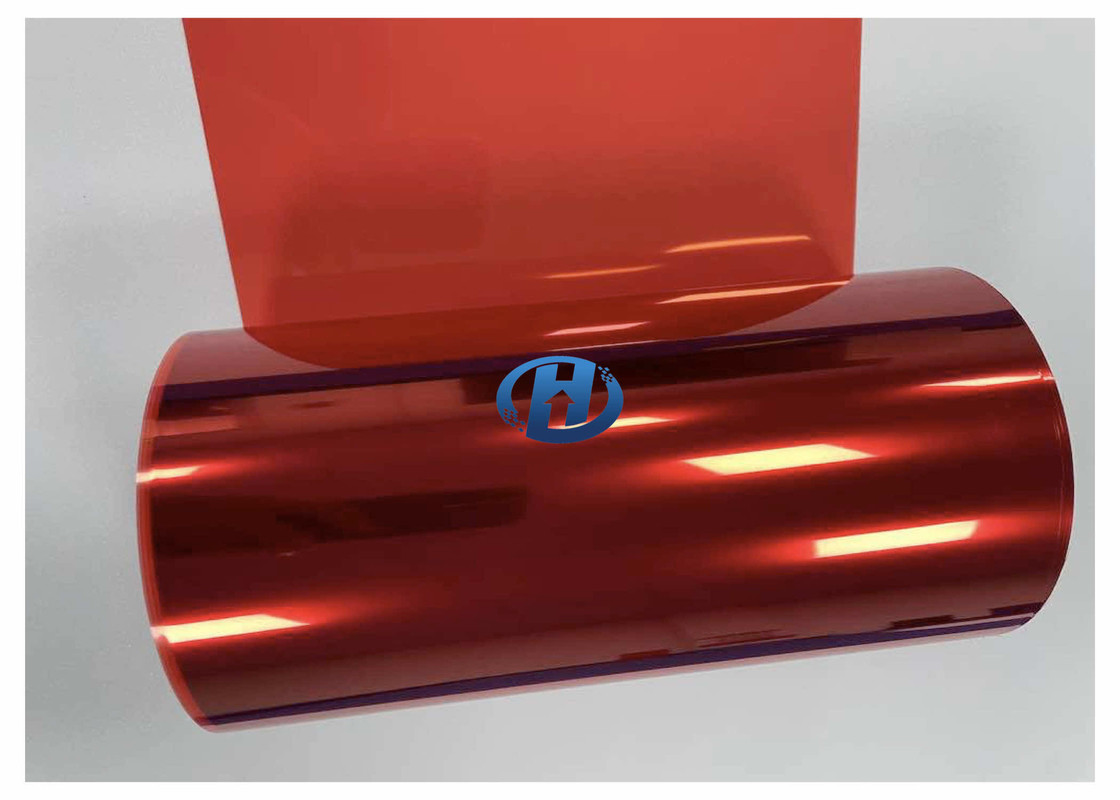

20 μm PET Non-Silicone Release Film Red Polyethylene Terephthalate As a waste discharge film used in 3C industries

20 μm PET Non-Silicone Release Film Red Polyethylene Terephthalate As a waste discharge film used in 3C industries

  • Highlight

    Non Silicone Release Film 20micron

    ,

    Polyethylene Terephthalate pet Film

    ,

    PET Non Silicone Release Film

  • Material
    Polyethylene Terephthalate
  • Color
    Red, Customized
  • Thickness
    20μm ± 3%
  • Width
    ≤2300mm
  • Core
    6" Or 3"
  • Coating
    Single Side Non Silicone Coating
  • Release Force
    20-40gf
  • Subsequent Adhesion Rate
    ≥75%
  • Length
    ≤12000m
  • Splice
    ≤1
  • Sample
    A4 Sheet For Free
  • Place of Origin
    China
  • Brand Name
    HSF
  • Model Number
    20R5SF-SS-PET
  • Minimum Order Quantity
    1000kg
  • Packaging Details
    PE wrapping film + Bubble film + Wooden pallet (W.1100mm x L. 1100mm x H. 100mm), customized
  • Delivery Time
    within 10 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    80000kg per week

20 μm PET Non-Silicone Release Film Red Polyethylene Terephthalate As a waste discharge film used in 3C industries

PET Red 20micron, Non-Silicone Release, High temperature resistant tape, silicone protective film, labels, cellphone.

S/N Test Item Unit Value Test Method
1 Thickness μm 19.46 DIN53370
2 Color Red
3 Tensile Strength MD N/mm² 182 DIN53455-6-5
TD N/mm² 216
4 F-5 MD N/mm² 97.8 DIN53455-6-5
TD N/mm² 89.4
5 Elongation @ break (%)

MD



% 116 DIN53455-6-5
TD % 96
6 Elasticity Modulus MD N/mm² 3565 DIN53455-6-5
TD N/mm² 3840
7 Friction Coefficient F/M-US   0.411 DIN53375
F/M-UK   0.315
8 Haze % 70.6 ASTM D1003
9 Luminousness % 75.8 ASTM D1003
10 Glossiness % 26.5-28 ASTM D2457
11 Thermal Shrinkage MD % 1.5 ASTM D1204 150, 30min.
TD % 0
12 Wetting Tension mN/m 58 ASTM D2578
13 Release Force gf/25mm 29 Final 10, 20min.
14 Sub-sequent Adhesion Rate % 91%



PET Non-Silicone Release, High temperature resistant tape, silicone protective film, labels, cellphone.

PET non-silicone release film is applied to high temperature resistant tape, silicone protective film, labels, cellophane, etc.

It is suitable for the release, transfer lamination and processing of various adhesive materials for punching.



Product features:

1. PET is used as the substrate for precision coating of silicone-free release agent, forming a uniform and stable coating on the surface.

2. Class 1000 dust-free workshop, strict appearance management.

3. No silicon pollution.

4. Customized material thickness, color, etc. according to customer requirements.
