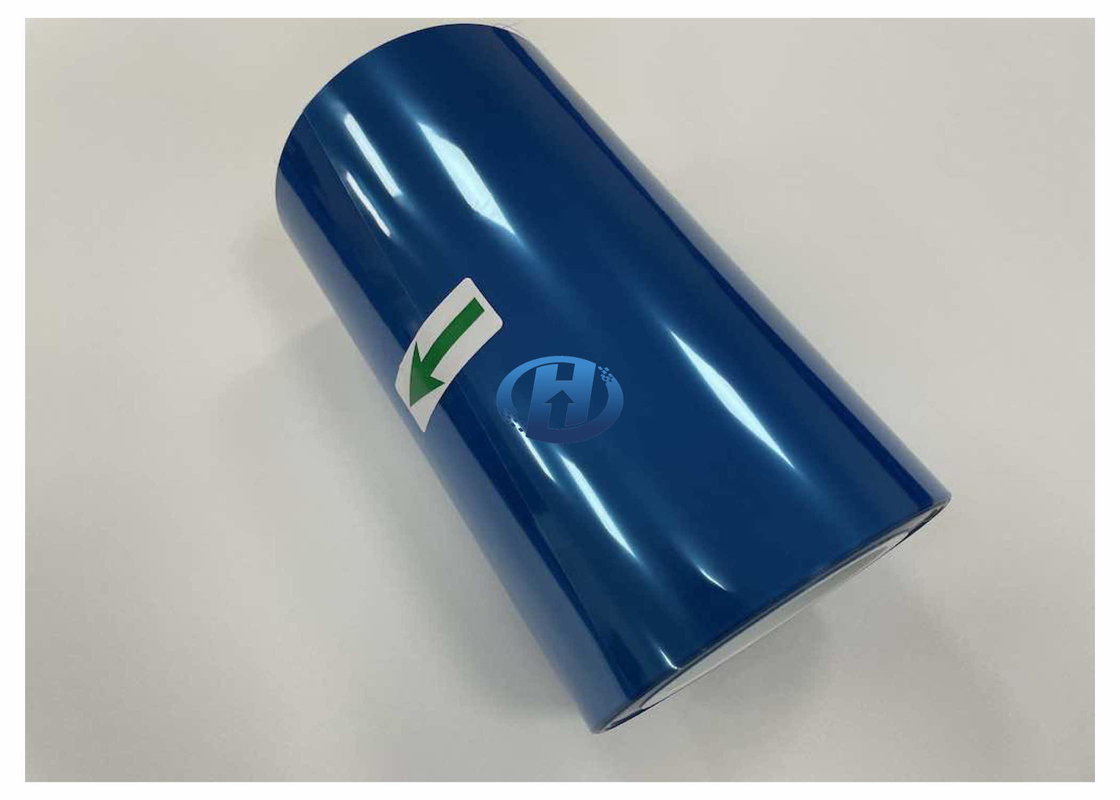

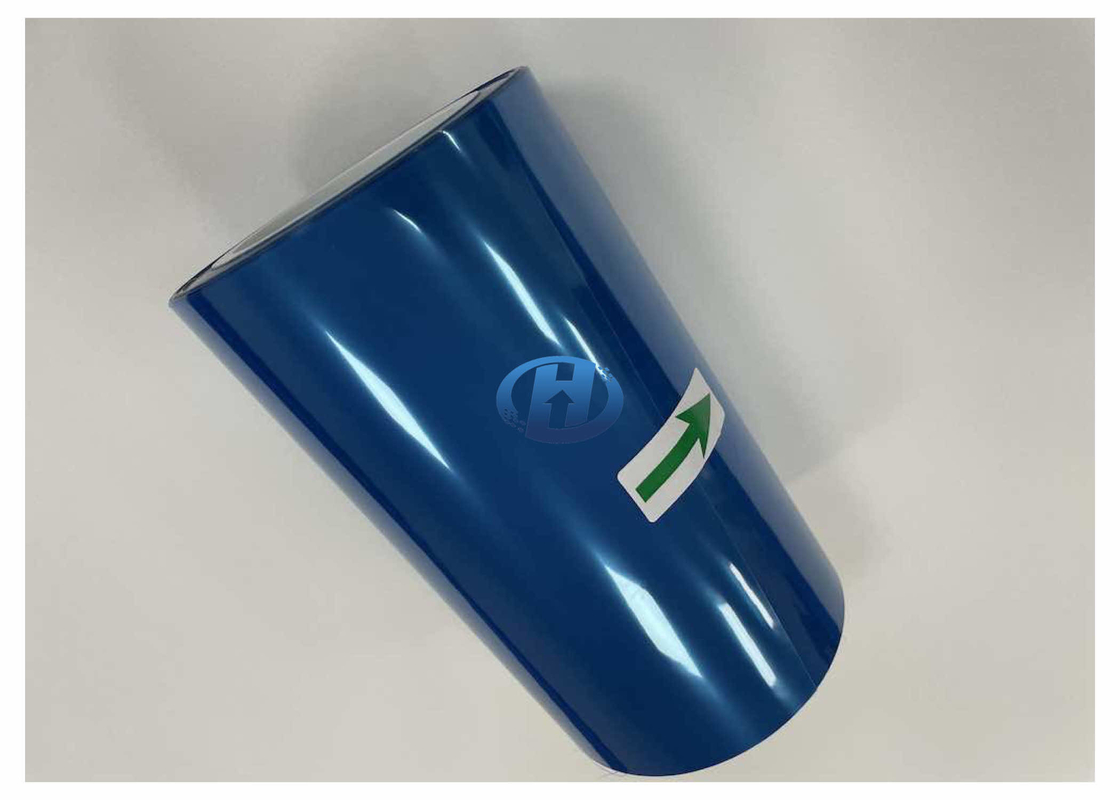

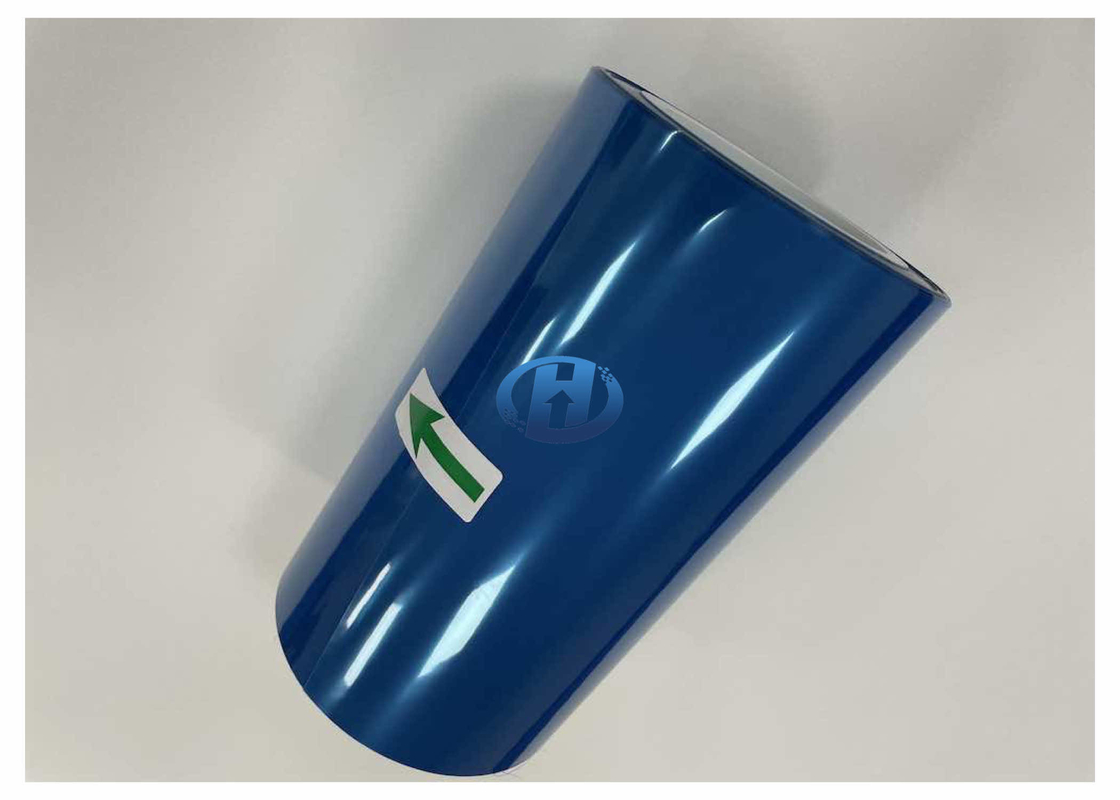

50 μm Blue PET Non-Silicone Release Film Used in 3C industries as Waste Discharge Films
-
Highlight
50micron Non Silicone Release Film
,50micron metallised polyester film
,Blue Non Silicone Release Film
-
MaterialPolyethylene Terephthalate
-
ColorBlue, Customized
-
Thickness50μm ± 3%
-
Width≤2300mm
-
Core6" Or 3"
-
CoatingDouble Side Non Silicone Coating
-
Release ForceSide A 1-5gf, Side B 5-10gf, The Ratio Of Release Force Can Be Customized
-
Subsequent Adhesion Rate≥75%
-
Length≤8000m
-
Splice≤1
-
SampleA4 Sheet For Free
-
Place of OriginChina
-
Brand NameHSF
-
Model Number50BLU0515SF-DS-PET
-
Minimum Order Quantity1000kg
-
Packaging DetailsPE wrapping film + Bubble film + Wooden pallet (W.1100mm x L. 1100mm x H. 100mm), customized
-
Delivery Timewithin 10 days
-
Payment TermsT/T, L/C
-
Supply Ability80000kg per week
50 μm Blue PET Non-Silicone Release Film Used in 3C industries as Waste Discharge Films
PET Blue 50micron, Non-Silicone Release, High temperature resistant tape, silicone protective film, labels, cellphone.
| S/N | Test Item | Unit | Standard | Value | Test Method | ||
| 1 | Thickness | μm | 50 ±2% | 49.72 | GB/T6672 | ||
| 2 | Color | Blue | |||||
| 3 | Tensile Strength | MD | Mpa | ≥180 | 187 | GB/T 1040.3 | |
| TD | Mpa | ≥190 | 196 | ||||
| 4 | Elasticity Modulus | MD | Mpa | / | 4144 | ||
| TD | Mpa | / | 4230 | ||||
| 5 | Elongation @ break (%) |
MD
|
% | ≤200 | 148 | ||
| TD | % | ≤200 | 139 | ||||
| 6 | Thermal Shrinkage | MD | % | ≤1.5 | 0.96 | 1 | 150℃/30min |
| TD | % | ≤0.0 | 0.00 | 0 | 200℃/10min | ||
| 7 | Friction Coefficient | F/M-US | % | ≤0.65 | 0.5 | GB/T 10006 | |
| F/M-UK | % | ≤0.50 | 0.3 | ||||
| 8 | Haze | % | ≤5 | 2.99 | GB/T2410 | ||
| 9 | Luminousness | % | ≥86 | 89.4 | GB/T2410 | ||
| 10 | Glossiness | % | ≥100 | 133 | GB/T8807 | ||
| 11 | Wetting Tension | mN/m | ≥50 | 58 | GB/T14216 | ||
| 12 | Release Force | Inner | gf/25mm | 3-5 | 4 | Final 10, 20min. | |
| Outer | 10-15 | 12 | |||||
| 13 | Sub-sequent Adhesion Rate | Inner | % | ≥85 | 90 | ||
| Outer | ≥85 | 92 | |||||
PET Non-Silicone Release, High temperature resistant tape, silicone protective film, labels, cellphone.
It is applied to high temperature resistant tape, silicone protective film, labels, cellophane, etc.
It is suitable for the release, transfer lamination and processing of various adhesive materials for punching.
Product features:
1. PET is used as the substrate for precision coating of silicone-free release agent, forming a uniform and stable coating on the surface.
2. Class 1000 dust-free workshop, strict appearance management.
3. No silicon pollution.
4. Customized material thickness, color, etc. according to customer requirements.
