Highlight
80micron Cast Polypropylene Film
,Casting Polypropylene Release Film
,White Cast Polypropylene Film
-
MaterialCasting Polypropylene
-
ColorWhite, Customized
-
Halogen FreeYes
-
Thickness80 ± 5μm, Customized
-
Width1200 ± 3mm, Customized
-
Core3" Or 6"
-
CoatingSingle Side UV Cured Silicone Coating
-
Release Force3-5gf, Customized
-
Subsequent Adhesion Rate≥85%
-
Length2500 ± 200m, Customized
-
Splice≤1
-
SampleA4 Sheet For Free
-

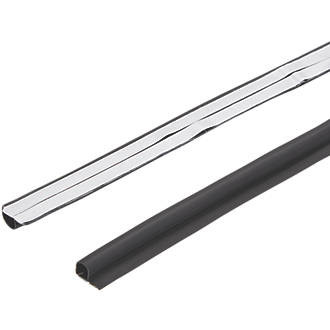

ApplicationTapes, Release Film For Window Sealing Strips, Etc.
-
Place of OriginChina
-
Brand NameHSF
-
Model Number80WSS5-CPP
-
Minimum Order Quantity10000㎡
-
Packaging DetailsPE wrapping film + Bubble film + Wooden pallet (W.1100mm x L. 1100mm x H. 100mm), customized
-
Delivery Timewithin 10 days
-
Payment TermsT/T, L/C
-
Supply Ability80000kg per week

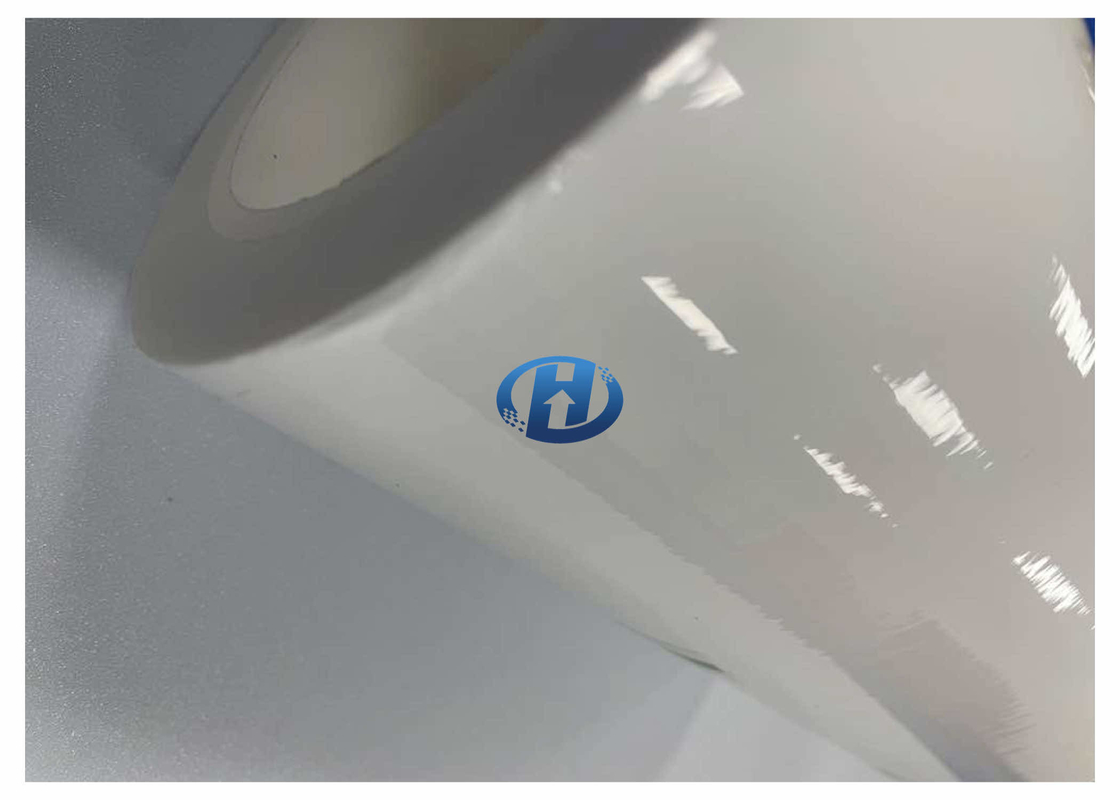

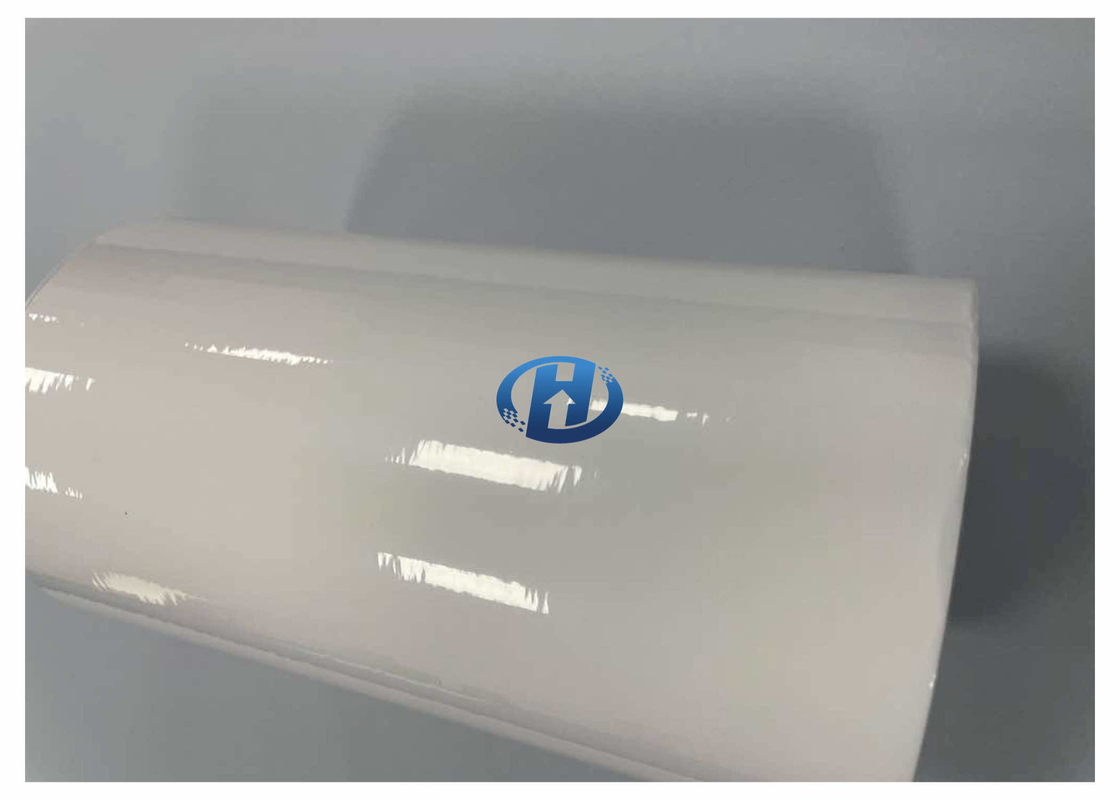

80micron Cast Polypropylene Film
Casting Polypropylene Release Film, 80micron, White,for Tape, good flatness and rigidity, strong mechanical adaptability
| Item | Unit | Test Method | Test Condition | Index | |
| Melt Flow Index | g/10min | ASTM D-1238 | 230℃ x 2.16kg | 3 | |
| Tensile Strength @ Yield | kg/cm³ | ASTM D-638 | 23℃ | 350 | |
| Elongation @ Break | % | ASTM D-638 | 23℃ | >200 | |
| Flexural Modulus | Mpa | ASTM D-790A | 23℃ | 1380 | |
| Hardness | R-Scale | ASTM D-785 | 23℃ | 58-60 | |
| Izod Impact Strength | kg-cm/cm | ASTM D-256 | 23℃ 1/8" (Thickness) | 2.8 | |
| Tear Strength (CD) | N/mm | ASTM | 23℃ | 23-25 | |
| Tear Strength (MD) | N/mm | ASTM | 23℃ | ||
| Heat Deflection Temperature | ℃ | ASTM D-648 @ 4.6kg/cm³ | Unannealed 1/4" (Thickness) | 120 | |
| Molding Shrinkage | % | FCFC Method | 23℃ | 1.02-1.05 | |
| Specific Gravity | - | ASTM D-792 | 23℃/23℃ | 0.92 | |
| FDA Compliance | - | 21 CFR Pt 177.1520 | - | Yes | |
| Level of Flame Retardant | - | - | - | No | |
| Acid & Alkali Resistance | - | - | - | Yes | |
| Visual | Flat, without (bubble, wrinkle, stain, damage, impurities) | ||||
| Dimensional Tolerance | Thickness | μm | Caliper | Room Temperature | 80 ± 5 |
| Width | mm | 1200±3 | |||
| Release Force | gf/25mm | TESA 7475 Finat 10. | Room Temperature,Specimen width: 25mm, Fixture distance: 50mm, Speed: 100mm/min. | 3-5 | |
| Subsequent Adhesion Rate | % | ≥85 | |||
CPP film is a non-stretching, non-oriented flat extrusion film, with light weight, high transparency, good flatness,
good rigidity, strong mechanical adaptability, excellent heat sealability, moisture resistance and heat resistance,
and smoothness. It has good performance, high film-making speed, uniform thickness, moisture-proof, oil-resistant,
heat-resistant and cold-resistant, easy to heat seal, and its anti-squeeze and packaging machinery applicability are
better than polyethylene film and so on. It has excellent optical properties and can be used for automatic packaging.
CPP film can be used in the packaging of food, medicine, stationery, cosmetics and textiles through bag making.
CPP film is used to package heat-sterilized food, condiments, soups, etc.; it can also be used for the surface layer,
interlayer and auxiliary film of stationery products, such as loose-leaf, protective film for photos and collections, and
can also be used as various labels and sample tapes. In recent years, it has also been used in the field of lithium batteries.
Our products are sold all over the world, you can rest assured.
