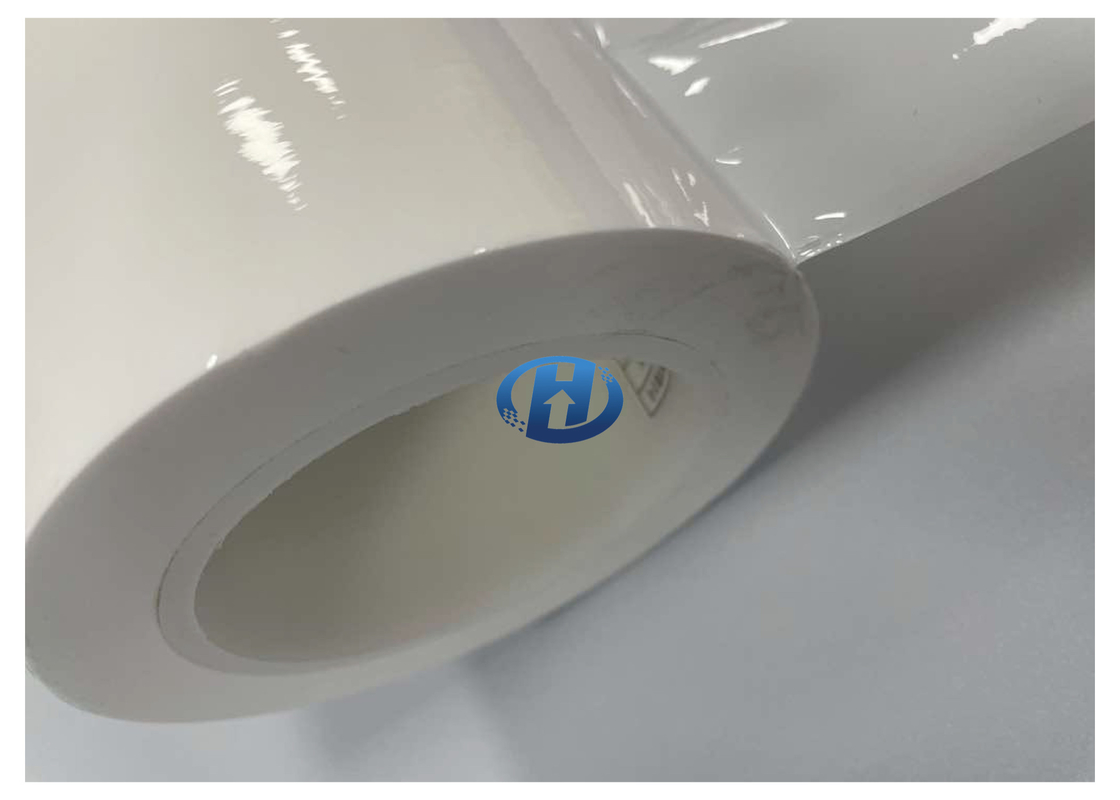

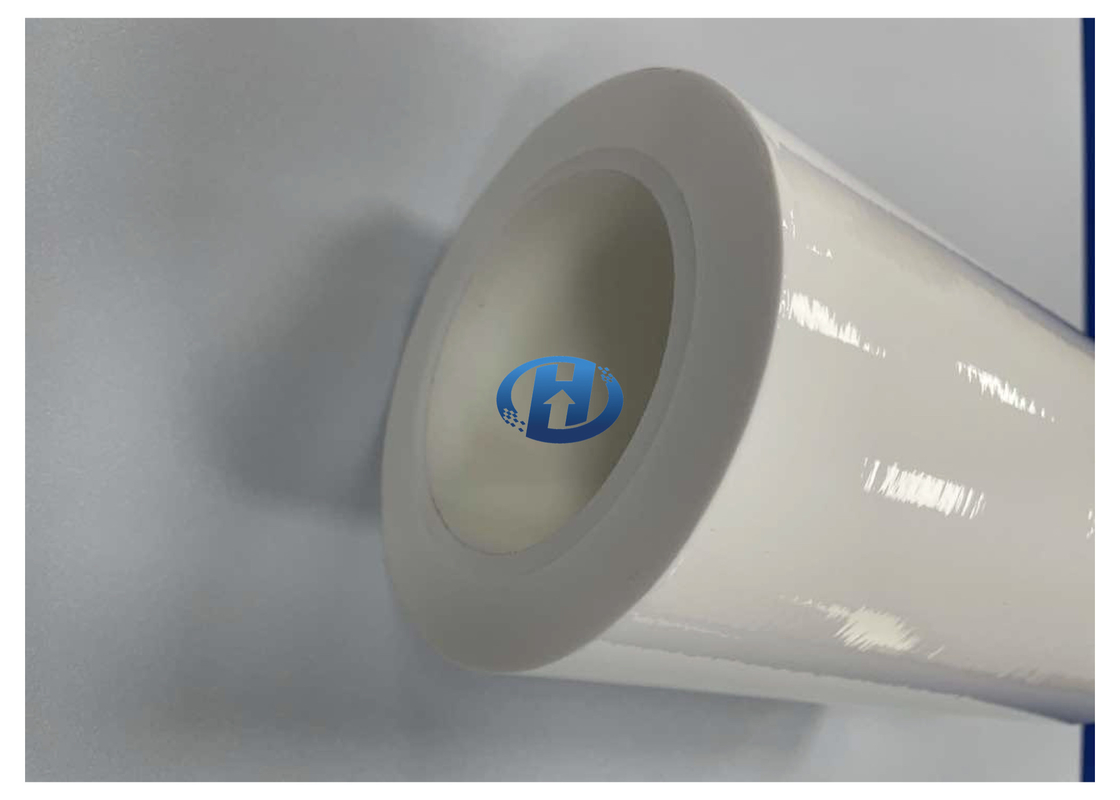

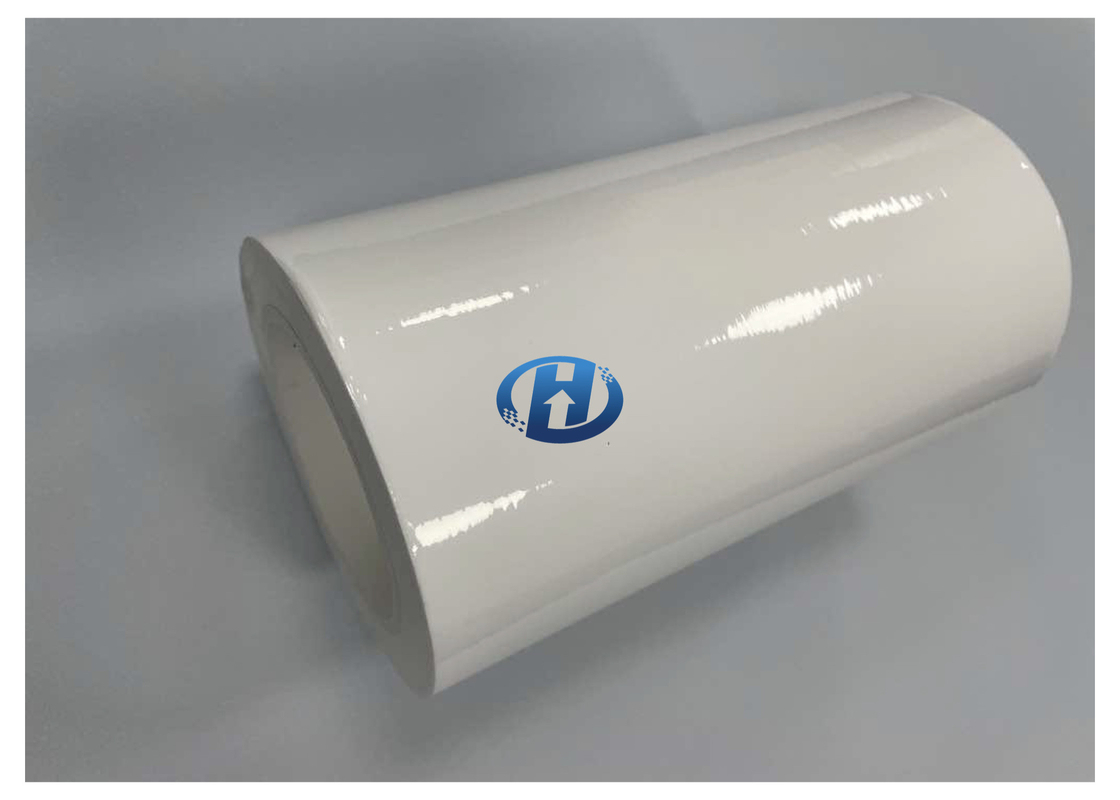

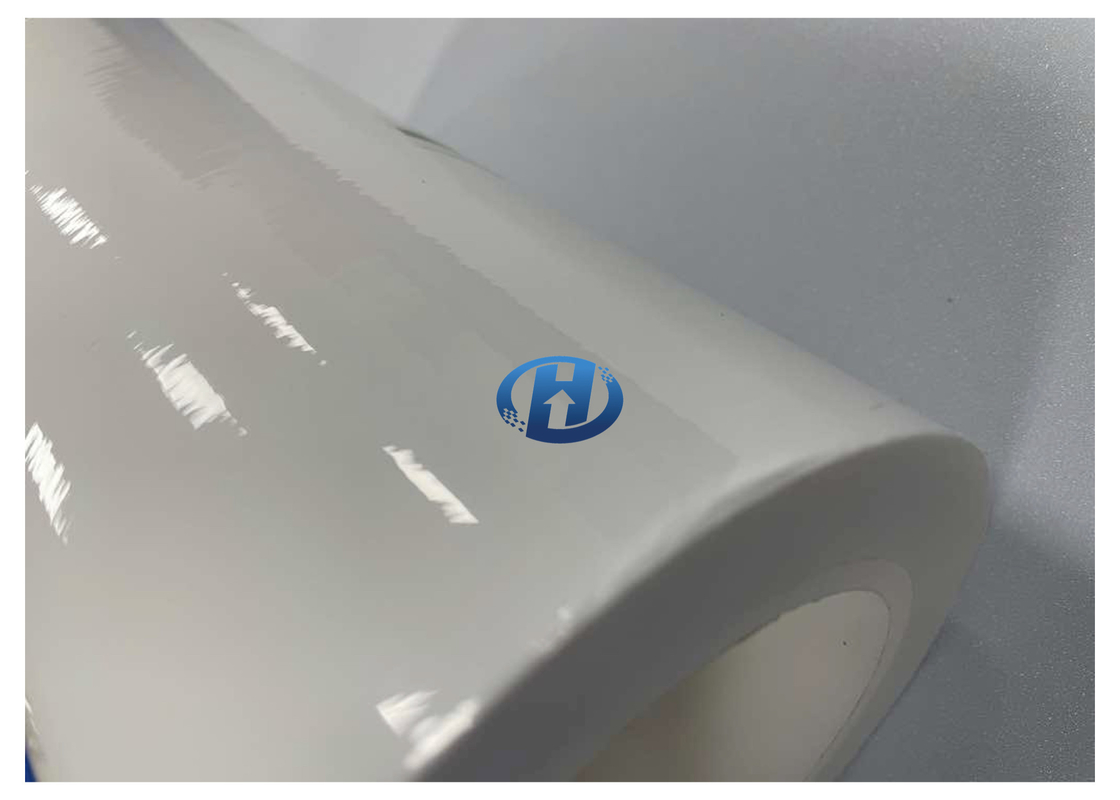

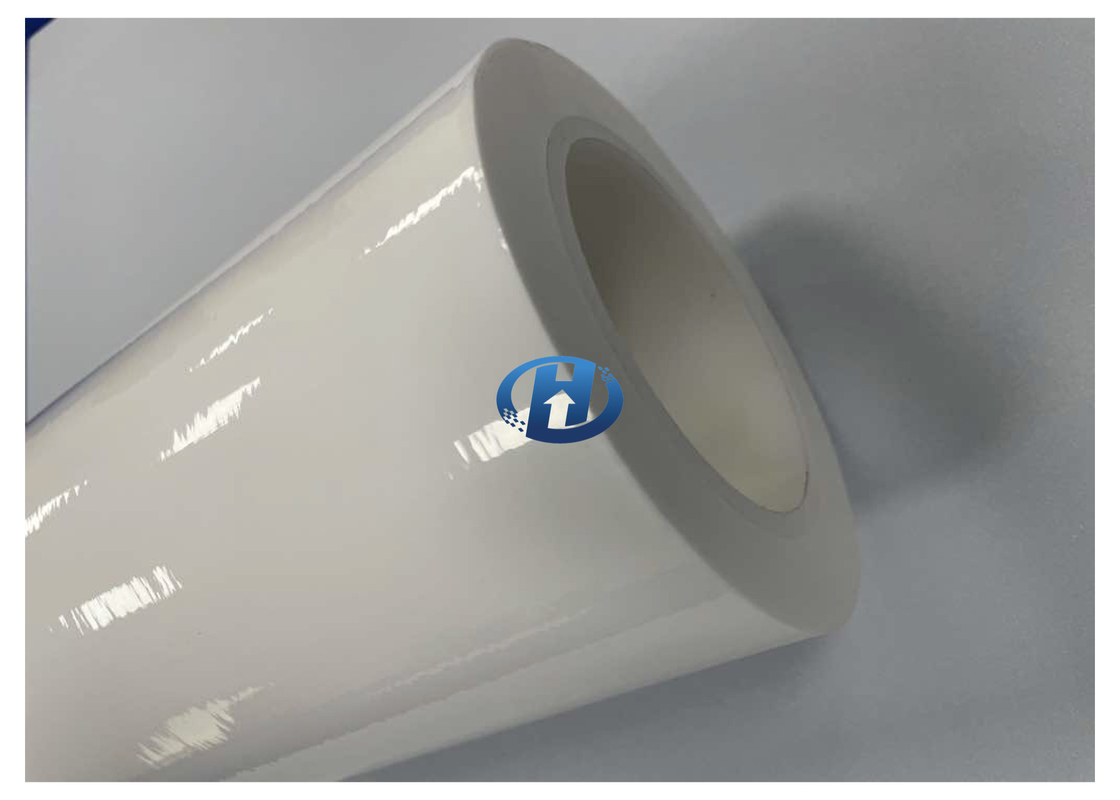

Silicone Coated Polypropylene Release Film,light weight, high transparency, good flatness, good rigidity.
| Characteristics | CPP film is a non-stretching, non-oriented flat extrusion film, with light weight, high transparency, good flatness, good rigidity, strong mechanical adaptability, excellent heat sealability, moisture resistance and heat resistance, and smoothness. Good performance, high film-making speed, uniform thickness, moisture-proof, oil-resistant, heat-resistant and cold-resistant, easy to heat seal, and its anti-squeeze and packaging machinery applicability are better than polyethylene film and so on. It has excellent optical properties and can be used for automatic packaging. CPP film can be used in the packaging of food, medicine, stationery, cosmetics and textiles through bag making, and it is the largest in food packaging. CPP film is used to package heat-sterilized food, condiments, soups, etc.; it can also be used for the surface layer, interlayer and auxiliary film of stationery products, such as loose-leaf, protective film for photos and collections, and can also be used as various labels and sample tapes. In recent years, it has also been used in the field of lithium batteries |
| Item | Unit | Test Method | Test Condition | Index |
| Melt Flow Index | g/10min | ASTM D-1238 | 230℃ x 2.16kg | 3 |
| Tensile Strength@Yield | kg/cm³ | ASTM D-638 | 23℃ | 350 |
| Elongation @ break | % | ASTM D-638 | 23℃ | >200 |
| Flexura Modulus | Mpa | ASTM D-790A | 23℃ | 1380 |
| Hardness | R-Scale | ASTM D785 | 23℃ | 58-60 |
| Izod Impact Strength | kg-cm/cm | ASTM D-256 | 23℃ 1/8“ (Thickness) | 2.8 |
| Tear Strength (CD) | N/mm | ASTM | 23℃ | 23-25 |
| Tear Strength (MD) | N/mm | ASTM | 23℃ | 32-34 |
| Heat Deflection Temperature | ℃ | ASTM D-648@ 4.6kg/cm³ | Unannealed 1/4" (Thickness) | 120 |
| Molding Shrinkage | % | FCFC Method | 23℃ | 1.02-1.05 |
| Specific Gravity | - | ASTM D-792 | 23℃/23℃ | 0.92 |
| FDA Compliance | - | 21 CFR Pt 177.1520 | - | Yes |
| Level of Flame Retardant | - | - | - | No |
| Acid & Alkali Resistance | - | - | - | Yes |
| Visual | (flat, without (bubble, wrinkle, | stain, dammage, impurities) | ||
| Dimensional Tolerance |
Width Thickness |
Callipers | Room Temperature |
1200±3mm 0.08mnm ±0.005mm |
| Release Force |
Inner Outer |
TESA 7475 | Room Temperature, Specimen width: 25mm, Fixture distance: 50mm, Speed: 100mm/min |
3-5 10-15 |
| Subsequent Adhesion Rate |
Inner Outer |
TESA 7475 | Room Temperature, Specimen width: 25mm, Fixture distance: 50mm, Speed: 100mm/min |
≥85 ≥85 |
