Highlight
80micron thin polyethylene film
,80micron pe protection film
,thin polyethylene film 1000mm
-
MaterialHigh Density Polyethylene
-
ColorBlue, Customized
-
Halogen FreeYes
-
Thickness80 ± 5μm, Customized
-
Width1000 ± 5mm, Customized
-
Core3" Or 6"
-
CoatingSingle Side UV Cured Silicone Coating
-
Release Force10-15gf, Customized.
-
Subsequent Adhesion Rate≥75%
-
Length3500 ± 200m, Customized
-
Splice≤1
-
SampleA4 Sheet For Free
-
Place of OriginChina
-
Brand NameHSF
-
Model Number80BSS15-PE
-
Minimum Order Quantity10000㎡
-
Packaging DetailsPE wrapping film + Bubble film + Wooden pallet (W.1100mm x L. 1100mm x H. 100mm), customized
-
Delivery Timewithin 10 days
-
Payment TermsT/T, L/C
-
Supply Ability80000kg per week

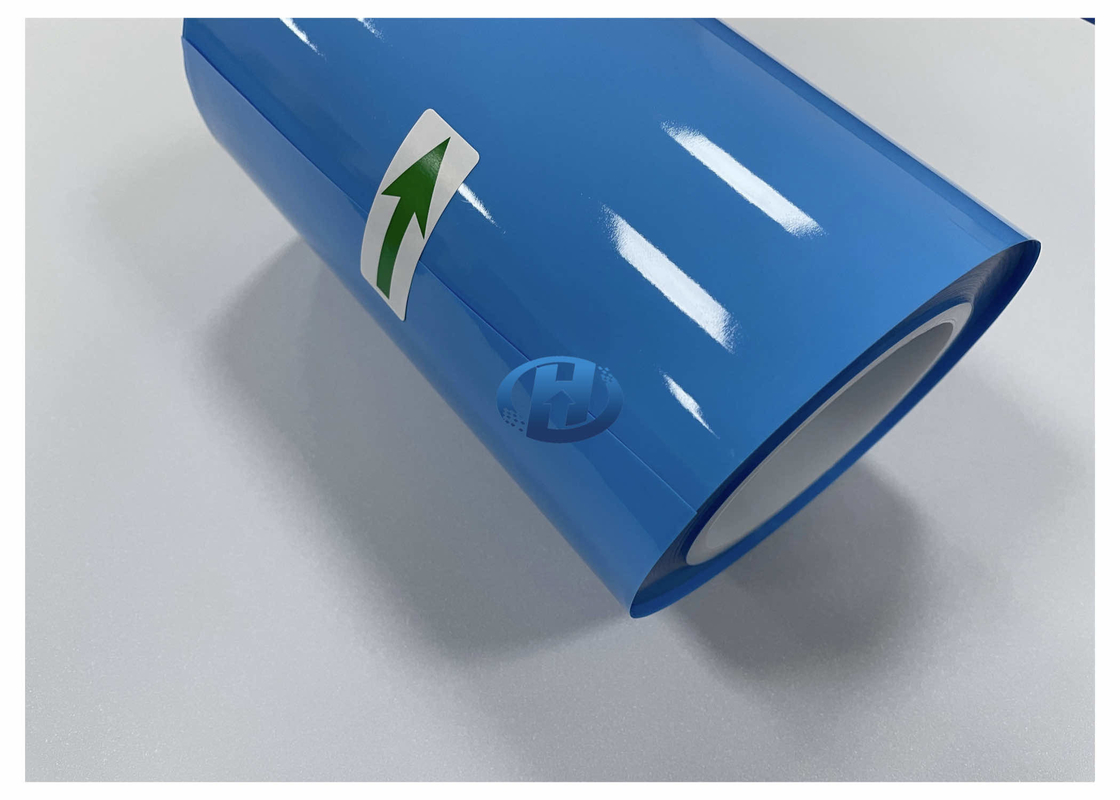

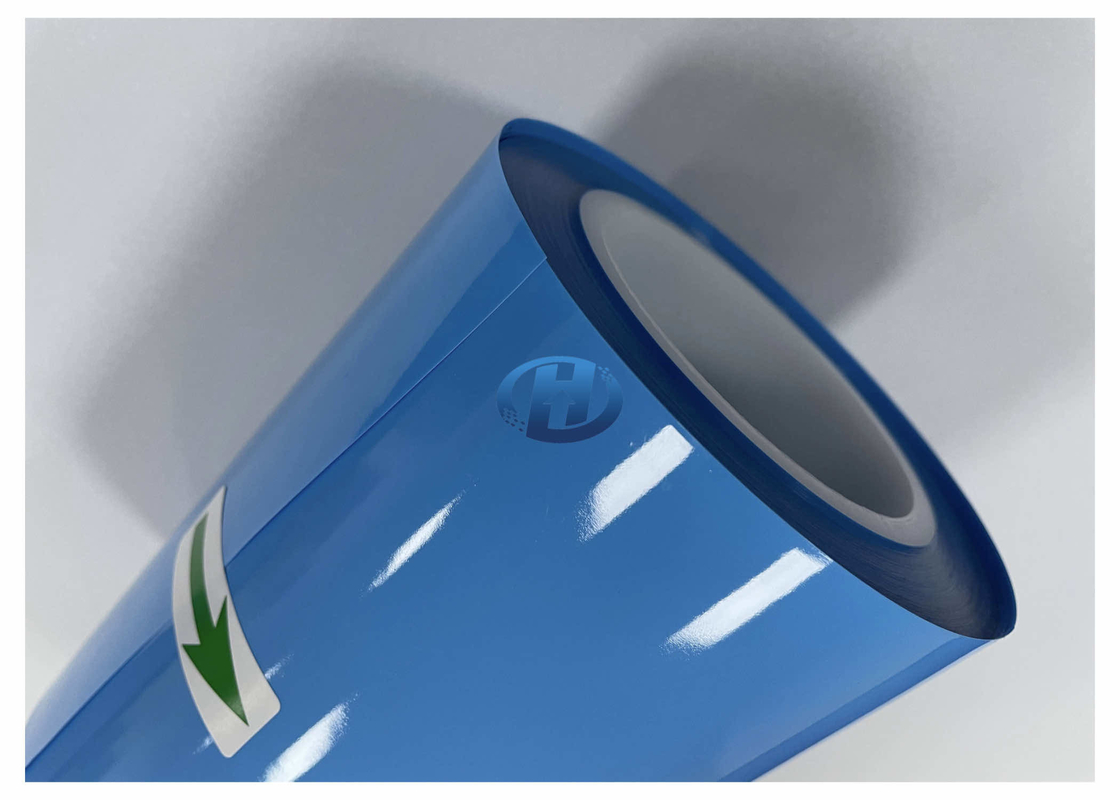

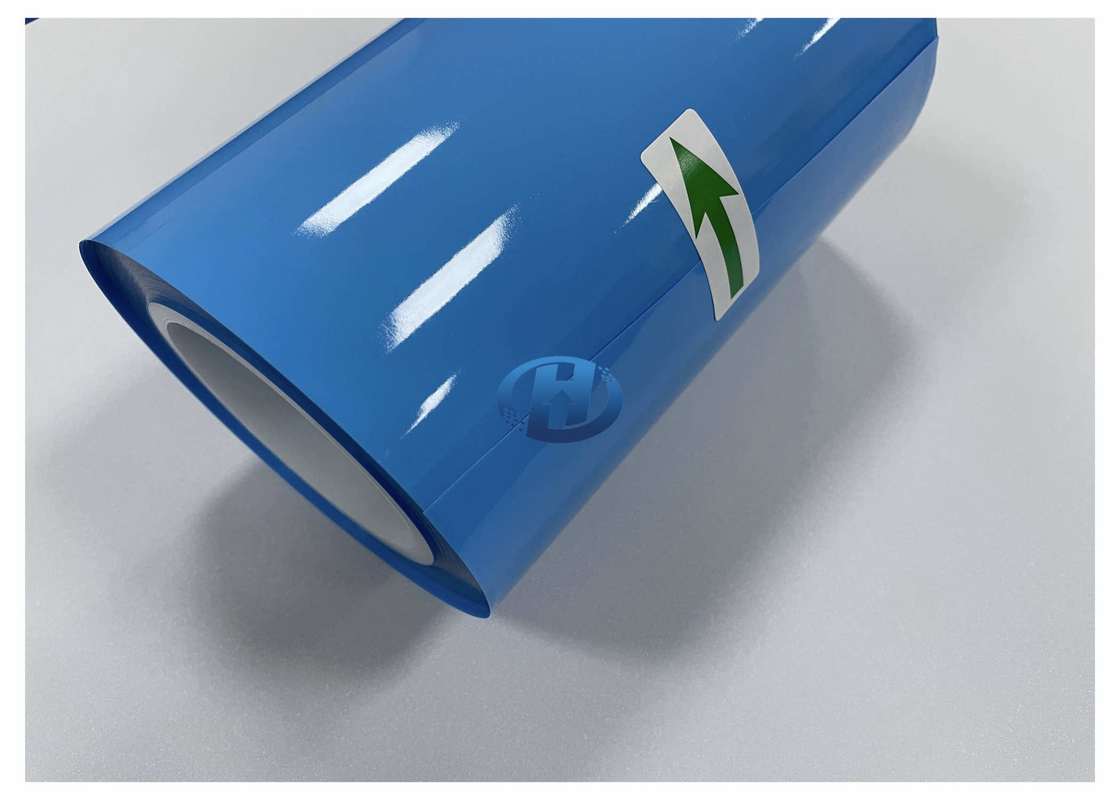

80micron Polyethylene Film HDPE Release Film
HDPE Release Film, S, 80micron, Blue, UV Cured, Application of Tape, Sealing strip, No solvent, No Silicone transfer.
| 1 | Appearance | No air bubbles / stains / breakage / impurities | Measured | |
| 2 | Size | Width (mm) | 1000 ± 5 | 1001 |
| Thickness (mm) | 0.080 ± 0.005 | 0.082 | ||
| 3 | Color difference | Colorimeter △E | ＜ 3 | ok |
| 4 | Tensile Strength (MPa) | TD | ≥ 15 | 21 |
| MD | ≥ 15 | 27 | ||
| 5 | Elongation @ break (%) | TD | ≥ 230 | 962 |
| MD | ≥ 230 | 684 | ||
| 6 | Surface Tension (Corona treatment) | Dyne Value | ≥42 dyne | 46 |
| 7 | Release Force (gf/25mm 20min.Finat 10) | 10-15 | 14 | |
| 8 | Subsequent Adhesion (%) | ≥ 75 | 83 | |
| 9 | Winding direction | Customized | - | |
| 10 | Splice No. | ≤1 | - | |
HDPE (low-pressure high-density polyethylene):
Non-toxic, tasteless, odorless white powder or columnar or semi-circular particles,
with wear resistance, capacitance resistance, water impermeability, flammability, poor flexibility.
The melting point is about 130°C, and the relative density is 0.941-0.965. it has good heat and cold resistance,
good chemical stability, high rigidity and toughness, good mechanical strength, dielectric properties,
and environmental stress cracking resistance are excellent as well.
The product is widely used as an ideal material for various tapes, sealing strips, etc.
