Highlight
60micron HDPE Film
,60micron Release Film
,UV Cured HDPE Film
-
MaterialHigh Density Polyethylene
-
ColorBlue, Customized
-
Halogen FreeYes
-
Thickness60 ± 5μm, Customized
-
Width960 ± 5mm, Customized
-
Core3" Or 6"
-
CoatingDouble Side UV Cured Silicone Coating
-
Release ForceSide A 5-10, Side B 20-30, The Ration Of Release Force Can Be Customized
-
Subsequent Adhesion Rate≥75%
-
Length4500m ± 200m, Customized
-
Splice≤1
-
SampleA4 Sheet For Free
-
Place of OriginChina
-
Brand NameHSF
-
Model Number60BDS1030-PE
-
Minimum Order Quantity10000㎡
-
Packaging DetailsPE wrapping film + Bubble film + Wooden pallet (W.1100mm x L. 1100mm x H. 100mm), customized
-
Delivery Timewithin 10 days
-
Payment TermsT/T,L/C
-
Supply Ability80000kg per week

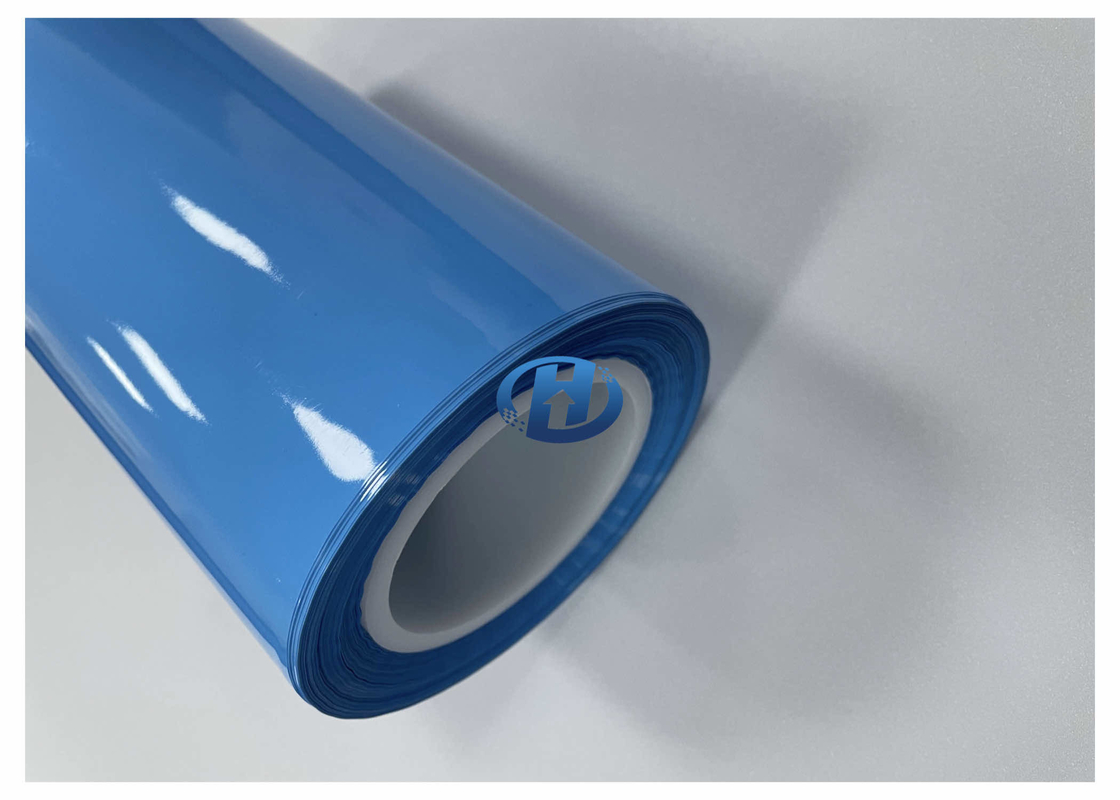

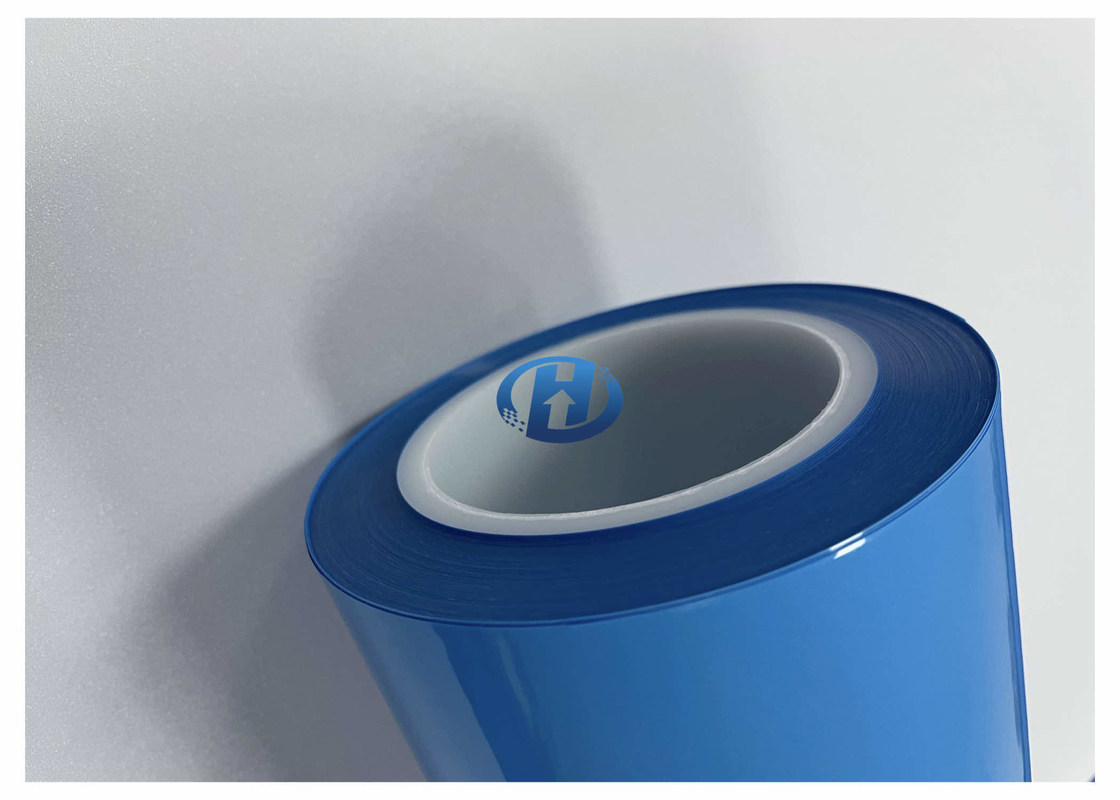

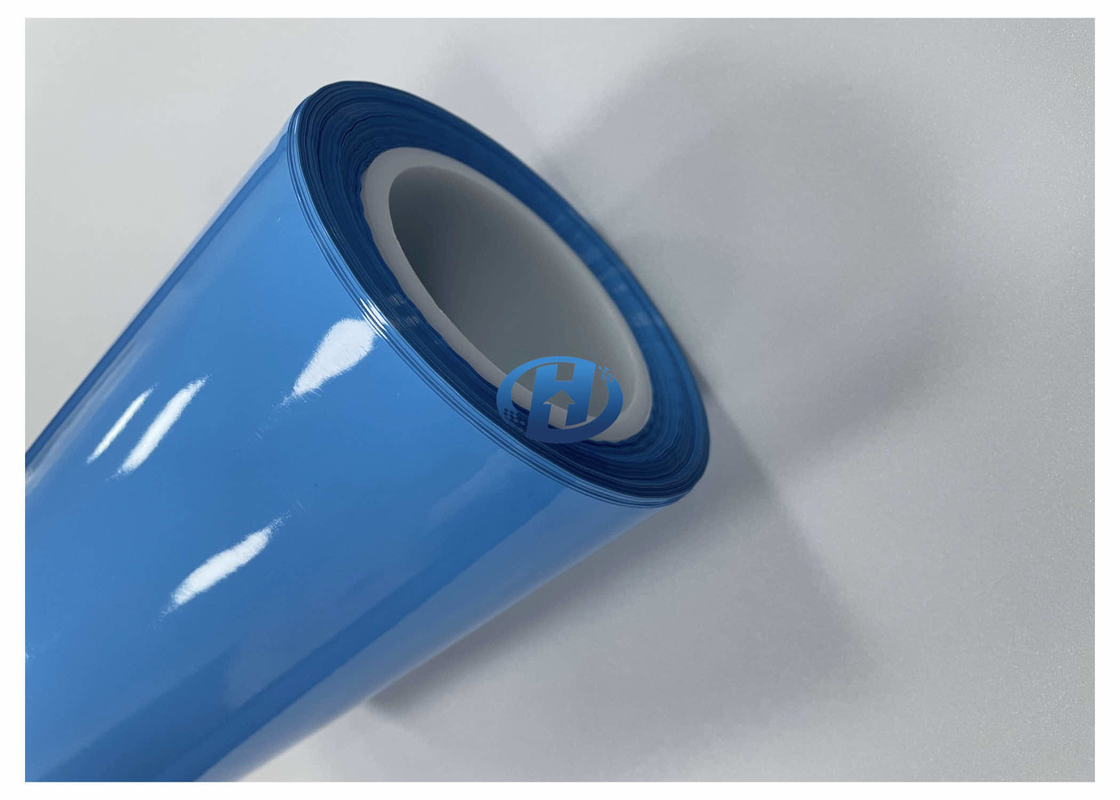

60micron HDPE Film
HDPE Release Film, D, 60micron, Blue, UV Cured, Application of Tape, Sealing strip, No solvent, No Silicone transfer.
| 1 | Appearance | No air bubbles / stains / breakage / impurities | Measured | |
| 2 | Size | Width (mm) | 960 ± 5 | 963 |
| Thickness (mm) | 0.060 ± 0.005 | 0.062 | ||
| 3 | Color | Blue | Colorimeter △E＜ 3 | ok |
| 4 | Max. Tension (N / 50mm) | TD | ≥ 30 | 87 |
| MD | ≥ 30 | 115 | ||
| 5 | Elongation @ break (%) | TD | ≥ 150 | 1001 |
| MD | ≥ 200 | 992 | ||
| 6 | Surface Tension (Corona treatment) | Dyne Value | ≥42 dyne for each side | |
| 7 | Release Force (gf/25mm 20min.Finat 10) | Inner | 5-10 | 7 |
| Outer | 20-30 | 24 | ||
| 8 | Subsequent Adhesion (%) | Inner | ≥75 | 88 |
| Outer | ≥75 | 90 | ||
| 9 | Winding direction | Customized | - | |
| 10 | Splice No. | ≤1 | - | |
HDPE (low-pressure high-density polyethylene):
Non-toxic, tasteless, odorless white powder or columnar or semi-circular particles,
with wear resistance, capacitance resistance, water impermeability, flammability, poor flexibility.
The melting point is about 130°C, and the relative density is 0.941-0.965. it has good heat and cold resistance,
good chemical stability, high rigidity and toughness, good mechanical strength, dielectric properties,
and environmental stress cracking resistance are excellent as well.
The product is widely used as an ideal material for various tapes, sealing strips, etc.
Our products are sold all over the world, you can rest assured.
